Show Designer

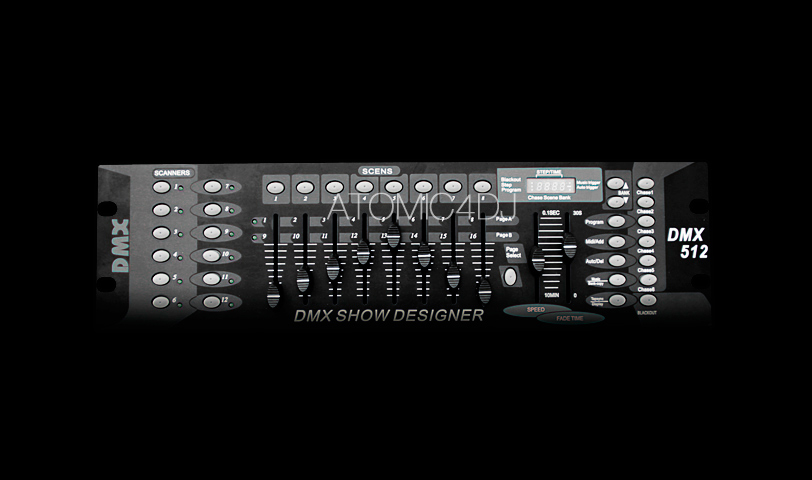

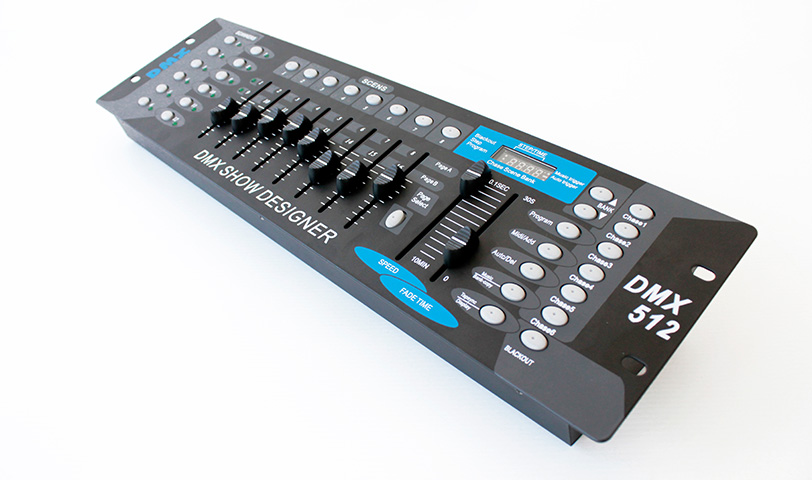

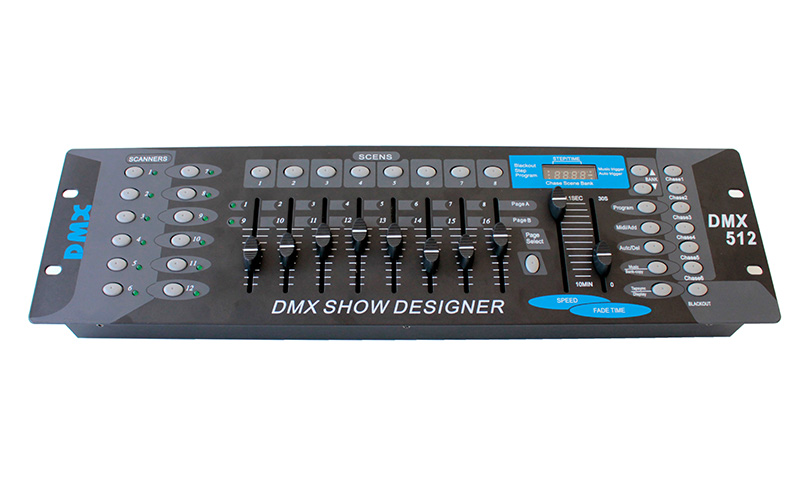

Lights Mixer Show Designer DMX

Cod.63400

192 dmx channels

12 Scanners (projectors/banks) 16 channels each

30 Banks for 8 programmable scenes each

6 Programmable chase of 240 scenes

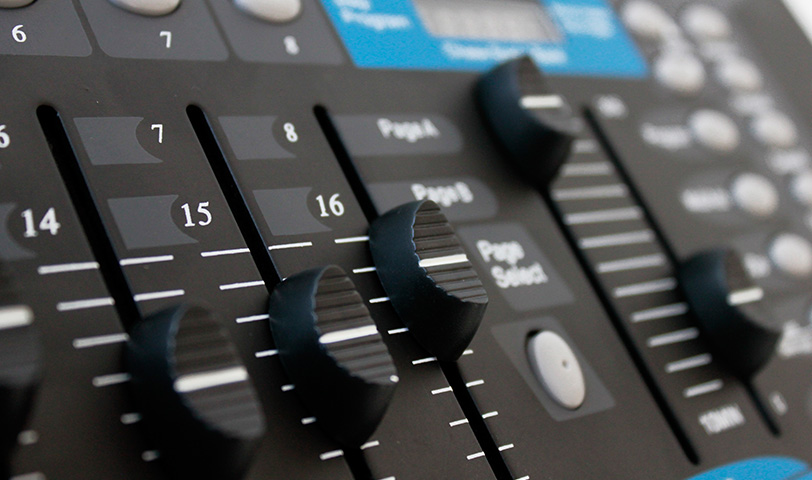

8 Sliders for manual control of the channels

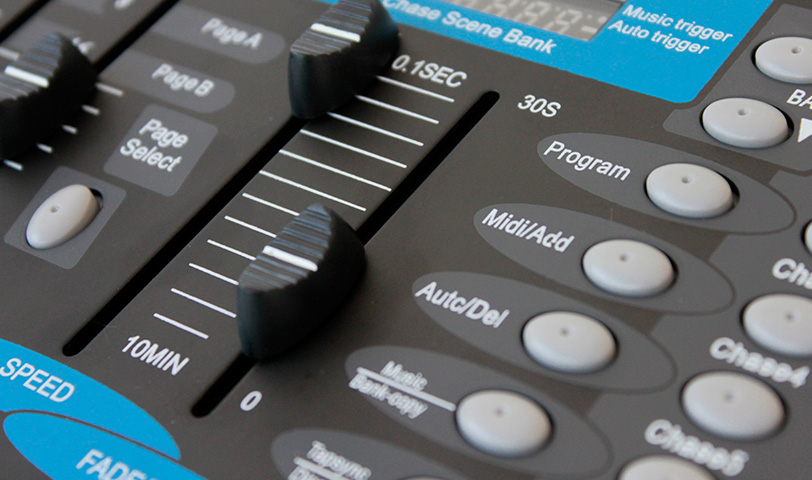

Automatic program modality to control the speed and time of the Fade through 2 dedicated sliders

Fade Time / Speed
General Blackout button

DMX reserving channels one in respect of the other within a chase

Real-time modification of the running programs (during performance)

Internal integrated microphone for the sound control mode

Midi control on banks, chase and blackout

DMX polarity selector

internal memory

4 bit LED display

TECHNICAL SPECIFICATIONS

Power Supply: 110-220Vac, 50-50Hz(DC9V-12V)

Electrical Tension: superior to 300mA

Power Consumption: 10W

Signal: DMX512

DMX Channels: 192 CH

Dimensions: L570*W180*H118mm

Weight: 2.8 KG

Protection Grade: IP20

Packing:

1* lights mixer show designer

1* cable 3 pin dmx

1* user manual

1* Power Supplier DC9V-12V
